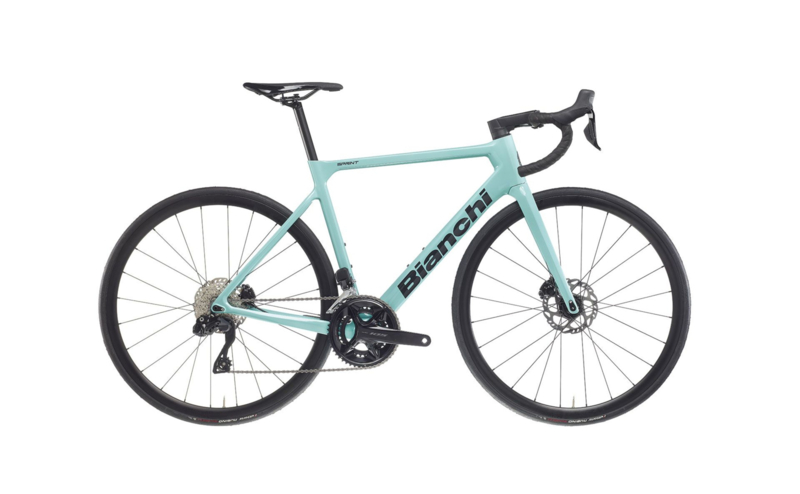

Bianchi Sprint 105

FRAMESET

1. FRAME

   Sprint carbon monocoque, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.5", integrated seat clamp, full carbon dropout, Disc brake flat mount, thru axle 12 x 142 sizes 47-50-53-55-57-59-61cm

2. FORK

   Full Carbon Aero Road 1.4">1.5" integrated head , Disc brake flat mount, thru axle 12x100

3. HEADSET

   ACROS & FSA, for internal cable routing

DRIVETRAIN

1. SHIFTERS

   Shimano 105 hydraulic disc brake for road for 160mm rotor

2. REAR DERAILLEUR

   Shimano 105 12sp, direct attachment, max 36T

3. FRONT DERAILLEUR

   Shimano 105 12sp, top gear 50-54T, 16T capacity, for rear 12-speed

4. CRANKSET

   Shimano 105 12sp,12- speed, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm

5. BOTTOM BRACKET

   Shimano, SM-BB72-41B, press fit for road, bearing, inner cover

6. CHAIN

   Shimano

BRAKES

1. BRAKES

   Shimano, Hydraulic disc brake, included in the shifter

2. ROTOR

   Shimano rotor for disc brake center lock, SM-RT70, 160mm

WHEELS

1. WHEELS

   Velomann alloy, disc brake, 30mm rim profile, hub team TC j-bend, spoke round 2mm black color, clincher 622x19C, w/rim tape, front HH12 - rear HH12/142

2. TIRE

   Vittoria Rubino IV G2.0 graphene, 700x25, 60TPI

COCKPIT

1. STEM

   Velomann, Alloy 6061, raise - 7° Ext: 80mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm

2. HANDLEBAR

   Velomann Compact, alloy 6061, diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-44/53cm,420mm-55/59cm,440mm-61cm

3. GRIPS

   Bianchi cork, black

SADDLE

1. SEATPOST

   Velomann alloy 6061, 15mm offset, 27,2mm; Length: 300mm-44cm ; 350mm-47/61cm

2. SADDLE

   Velomann Seta
